B-919

Tags: Borden, new

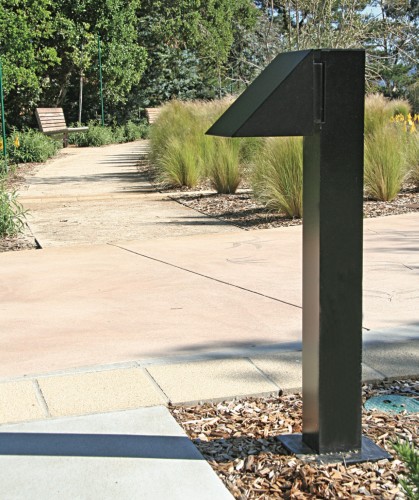

The B-919 from the Borden Lighting collection is a bollard version of the classic wedge 719 sconce. A formed aluminum housing and cast aluminum backplate contribute to its small but sturdy constuction. A high-transmission clear refractive acrylic lens maximizes output and distribution. Full cutoff and low glare also make it dark-sky friendly!

Spec Sheet (PDF) Find a Rep Contact Us

Fixtures

B-919

W: 6" x H: 6"     OAH: 36"

LED

  • E13 Downlight
    • Lumens: 1550 (initial)
    • Wattage: 13
  • CCT: 27K, 30K, 35K, 40K
  • CRI: >80
  • L70 @ 50,000 hrs.
  • Dimming options
    • D0:0-10v
    • D1:Triac (Leading Edge)*
    • D2:ELV (Trailing Edge)
Finish Codes:
Housing: PT



Standard Painted Finishes (PT)

Specify PT(XXX).

White (WHT)
Warm Grey (WMG)
Cool Grey (CLG)
Black (BLK)
Light Gold (LGD)
Medium Gold (MGD)
Light Titanium (LTM)
Medium Titanium (MTM)
Light Silver (LSV)
Medium Silver (MSV)
Deep Silver (DSV)
Light Bronze (LBZ)
Medium Bronze (MBZ)
Deep Bronze (DBZ)
Medium Copper (MCP)
Deep Copper (DCP)
Cream (CRM)
Textured Silver (TSV)
Textured Nickel (TNK)
Deep Gold (DGD)
Bright Copper (BCP)
Aged Copper (ACP)
Textured Copper (TCP)
Light Copper (LCP)
Silverado (SD)
Bronze Crater (BC)
Oil Rubbed Bronze (ORB)

NOTE: Computer monitors do not show colors accurately. These finishes should be used only as a rough guide. Consult with your Manning Representative for actual color samples.

Diffuser Codes: CRA



Clear refractive acrylic lens (CRA)

Clear refractive acrylic lens (CRA)
  1. HOUSING: Formed aluminum housing with cast aluminum backplate. High transmission clear refractive acrylic lens.
  2. FINISH: Finish is low VOC thermo-cure powdercoat paint. Specify three digit color suffix with "PT" finish options.
  3. DRIVER: Integral LED driver compatible with 0-10v, Triac, or ELV dimming.
  4. MOUNTING: Aluminum post supplied with base plate mounting. Standard height is 36".
