Gothic Pendant (305 series)

Email this fixture   |   Print   |   Locate a Manning rep
>


Tags: traditional, LED

Fixture Info (PDF)

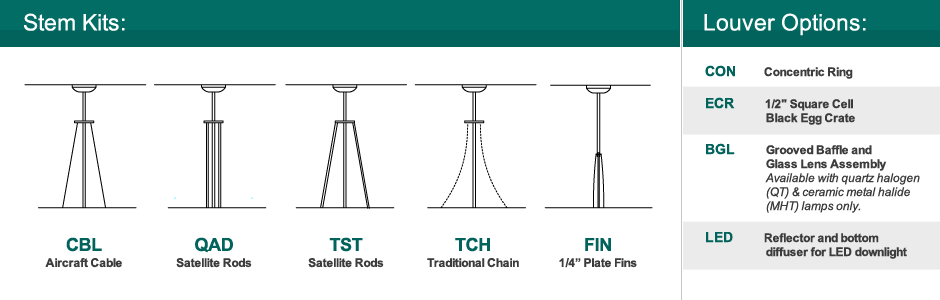

Fixture DimensionsLampinginformationLED Driver Housinginformation Finish: Louver information Diffuser Spec Sheet
LPI-305-11 Height: 29"
Dia: 11.5"
OAH: 101"
LED (Body/Downlight)
4L6T35
Conventional (Body/Downlight)
3N60 / 1R300		 INT:DKC PT CON WH,  IV,  FX Create PDF
 Please Note:
  1. 4L6T35 - (4) integrated LED array nominal 8 watts ea., 860 lumens ea., 3500K, 80+ CRI, 50,000 hr. L70. Integral constant current Class 2 LED drivers, max. input power = 36W.
  2. Lamping listed is Fixture Body/Downlight.
  3. Energy efficient LED and fluorescent lamp options also available. Please consult factory.
LPI-305-13 Height: 39"
Dia: 13.5"
OAH: 111"
LED (Body/Downlight)
4L6T35,  4L6T35 / 1L25C35
Conventional (Body/Downlight)
3N60 / 1R500		 INT:DKC PT CON,  LED WH,  IV,  FX D0,  D1,  D2 Create PDF
 Please Note:
  1. 4L6T35 - (4) integrated LED array nominal 8 watts ea., 860 lumens ea., 3500K, 80+ CRI, 50,000 hr. L70. Integral constant current Class 2 LED drivers, max. input power = 36W.
  2. 1L25C35 - (1) LED downlight module, nominal 26 watts, 2000 lumens, 3500K, >90 CRI, 50,000 hr. L70. Integral constant current 120/277v LED driver, max. input power = 26W.
  3. Lamping listed is Fixture Body/Downlight.
  4. LED 1%-100% Dimming: Compatible with 0-10v (D0), Triac (D1), or ELV (D2) dimming systems. Verify control system.
  5. Energy efficient LED and fluorescent lamp options also available. Please consult factory.
LPI-305-16 Height: 45.75"
Dia: 16.5"
OAH: 118"
LED (Body/Uplight/Downlight)
8L6T35,  8L6T35 / 1L34C35
Conventional (Body/Uplight/Downlight)
3N60 / 3R300 / 1R500		 INT:DKC PT CON,  LED WH,  IV,  FX D0,  D1,  D2 Create PDF
 Please Note:
  1. 8L6T35 - (8) integrated LED arrays, nominal 8 watts ea., 860 lumens ea., 3500K, 80+ CRI, 50,000 hr. L70. Integral constant current Class 2 LED drivers, max. input power = 64W.
  2. 1L34C35 - (1) LED downlight module, nominal 38 watts, 3000 lumens, 3500K, >90 CRI, 50,000 hr. L70. Integral constant current 120/277v LED driver, max. input power = 38W.
  3. Lamping listed is Fixture Body/DownlightUplights/Downlight
  4. LED 1%-100% Dimming: Compatible with 0-10v (D0), Triac (D1), or ELV (D2) dimming systems. Verify control system.
  5. Energy efficient LED and fluorescent lamp options also available. Please consult factory.
LPI-305-18 Height: 56.5"
Dia: 18.5"
OAH: 128"
LED (Body/Uplight/Downlight)
8L6T35,  8L6T35 / 1L40C35
Conventional (Body/Uplight/Downlight)
3N60 / 3R300 / 1R500		 INT:DKC PT CON,  LED WH,  IV,  FX D0,  D1,  D2 Create PDF
 Please Note:
  1. 8L6T35 - (8) integrated LED arrays, nominal 8 watts ea., 860 lumens ea., 3500K, 80+ CRI, 50,000 hr. L70. Integral constant current Class 2 LED drivers, max. input power = 64W.
  2. 1L40C35 - (1) LED downlight module, nominal 50 watts, 4000 lumens, 3500K, >90 CRI, 50,000 hr. L70. Integral constant current 120/277v LED driver, max. input power = 50W.
  3. Lamping listed is Fixture Body/DownlightUplights/Downlight
  4. LED 10%-100% Dimming: Compatible with 0-10v (D0), Triac (D1), or ELV (D2), dimming systems. Verify control system.
  5. Energy efficient LED and fluorescent lamp options also available. Please consult factory.
LPI-305-8 Height: 26"
Dia: 8.25"
OAH: 98"
LED ()
4L6T35
Conventional ()
1N100		 INT:DKC PT CON WH,  IV,  FX Create PDF
 Please Note:
  1. 4L6T35 - (4) integrated LED array nominal 8 watts ea., 860 lumens ea., 3500K, 80+ CRI, 50,000 hr. L70. Integral constant current Class 2 LED drivers, max. input power = 36W.
  2. Energy efficient LED and fluorescent lamp options also available. Please consult factory.

Gothic Pendant (305 series) Notes

  1. Specify three digit color suffix with "PT" finish option.
  2. HOUSING: Consists of solid cast aluminum trim panels with fabricated steel corner trim posts.
  3. MOUNTING: Fixture mounts to a standard octagonal junction box. LPI-305-16 and -18 must be attached to structure using a ceiling fan rated electrical box.
  4. CIRCUITS: Wired for one, two or three circuits.
  5. OVERALL HEIGHT: Standard OAH includes fixture height plus 6' main chain to ceiling.
